National Item Identification Number

00-203-2636
002032636
4720-00-203-2636
4720002032636

National Stock Number

Item Name

HOSE ASSEMBLY,NONMETALLIC

Federal Supply Class

4720

Referenced on: http://dieselgenerators.tpub.com//TM-9-6115-464-24P/css/TM-9-6115-464-24P_349.htm
Referenced on: http://dieselgenerators.tpub.com//TM-9-6115-464-24P/css/TM-9-6115-464-24P_402.htm
Referenced on: http://dieselgenerators.tpub.com//TM-9-6115-465-24P/TM-9-6115-465-24P0348.htm
Referenced on: http://dieselgenerators.tpub.com//TM-9-6115-465-24P/TM-9-6115-465-24P0397.htm

Description

A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.

Commercial and Government Entity Code (Supplier Data)

---

50599

---

CRANE CO
DBA CRANE RESISTOFLEX DIVISION
2575 W 5TH ST
JACKSONVILLE
FL
32254
904-389-3400

---

NSN (National Stock Number) 4720-00-203-2636, 4720002032636 NIIN (National Identification Number) 00-203-2636, 002032636

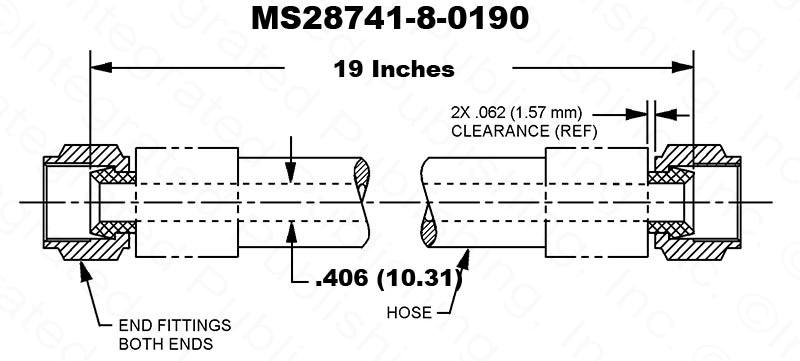

Part Numbers (Reference Numbers)

AN6271-8-19
MS28741-8-0190
MS28741-8-0190

Required Categories

HOSE OR TUBING SPEC/STD DATA
INNER CONVEYING TUBE MATERIAL
MEDIA FOR WHICH DES

Required Description

MIL MIL-H-8794 SPECIFICATION
RUBBER, SYNTHETIC
AIR AND
HYDRAULIC FLUID, PHOSP
