National Item Identification Number
01-325-2952
013252952
4720-01-325-2952
4720013252952
National Stock Number
Item Name
HOSE ASSEMBLY,NONMETALLIC
Federal Supply Class
4720
Description
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.
Commercial and Government Entity Code (Supplier Data)
98441
00624
NSN (National Stock Number) 4720-01-325-2952, 4720013252952 NIIN (National Identification Number) 01-325-2952, 013252952
Part Numbers (Reference Numbers)

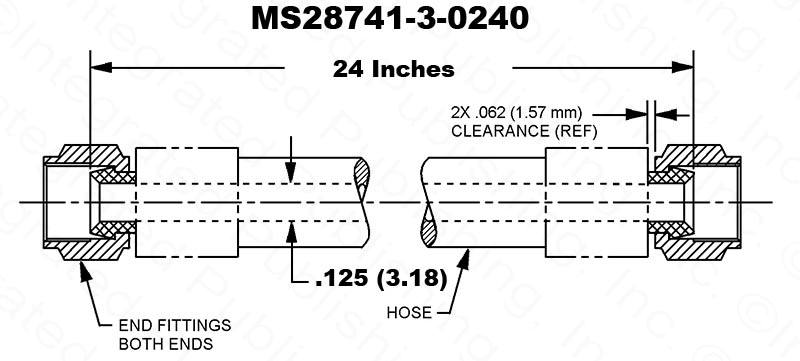

MS28741-3-0240
111417-3S-0240
350-3-0240
Required Categories
HOSE OR TUBING SPEC/STD DATA
INNER CONVEYING TUBE MATERIAL
MEDIA FOR WHICH DES
Required Description
MIL-H-8794,SIZE 3 SPECIFICATION
RUBBER, SYNTHETIC
FUEL/OIL, HYDROCARBON
SMOOT
