National Item Identification Number
01-287-4026
012874026
4720-01-287-4026
4720012874026
National Stock Number
Item Name
HOSE ASSEMBLY,NONMETALLIC
Federal Supply Class
4720
Description
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.
Commercial and Government Entity Code (Supplier Data)
98441
00624
NSN (National Stock Number) 4720-01-287-4026, 4720012874026 NIIN (National Identification Number) 01-287-4026, 012874026
Part Numbers (Reference Numbers)

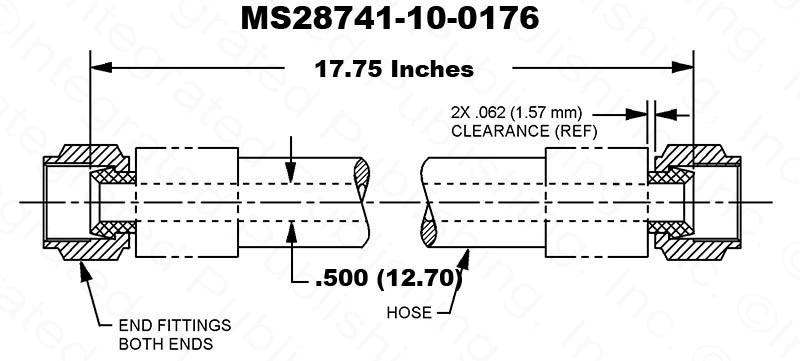

MS28741-10-0176
111417-10D0176
360-10D-0176
Required Categories
HOSE OR TUBING SPEC/STD DATA
INNER CONVEYING TUBE MATERIAL
MEDIA FOR WHICH DES
Required Description
MIL-H-8794,SIZE 10 SPECIFICATION
RUBBER, SYNTHETIC
FUEL/OIL, HYDROCARBON
SMOO
