National Item Identification Number
01-147-6301
011476301
4720-01-147-6301
4720011476301
National Stock Number
Item Name
HOSE ASSEMBLY,NONMETALLIC
Federal Supply Class
4720
Description
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.
Commercial and Government Entity Code (Supplier Data)
NSN (National Stock Number) 4720-01-147-6301, 4720011476301 NIIN (National Identification Number) 01-147-6301, 011476301
Part Numbers (Reference Numbers)

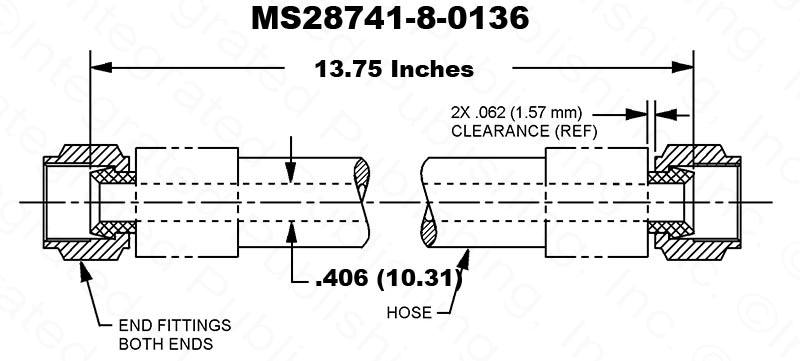

MS28741-8-0136
Required Categories
HOSE OR TUBING SPEC/STD DATA
INNER CONVEYING TUBE MATERIAL
MEDIA FOR WHICH DES
Required Description
MIL-H-8794 SIZE 8 SPECIFICATION
RUBBER, SYNTHETIC
FUEL/OIL, HYDROCARBON
SMOOT
