National Item Identification Number

01-004-9147
010049147
4720-01-004-9147
4720010049147

National Stock Number

Item Name

HOSE ASSEMBLY,NONMETALLIC

Federal Supply Class

4720

Description

A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING.

Commercial and Government Entity Code (Supplier Data)

---

NSN (National Stock Number) 4720-01-004-9147, 4720010049147 NIIN (National Identification Number) 01-004-9147, 010049147

Part Numbers (Reference Numbers)

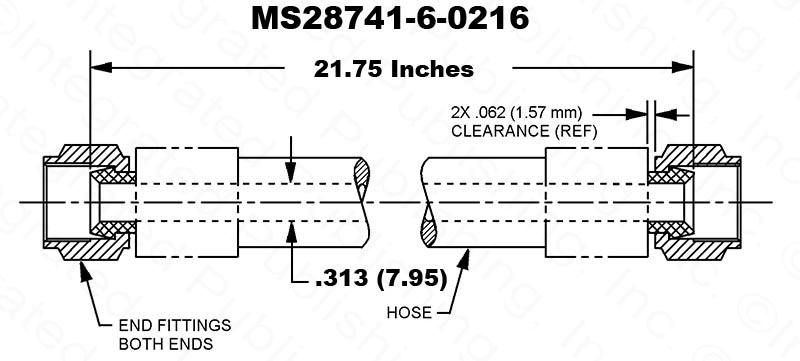

MS28741-6-0216

Required Categories

HOSE OR TUBING SPEC/STD DATA
INNER CONVEYING TUBE MATERIAL
MEDIA FOR WHICH DES

Required Description

MIL-H-8794,SIZE 6 SPECIFICATION
RUBBER, SYNTHETIC
FUEL/OIL, HYDROCARBON
SMOOT
